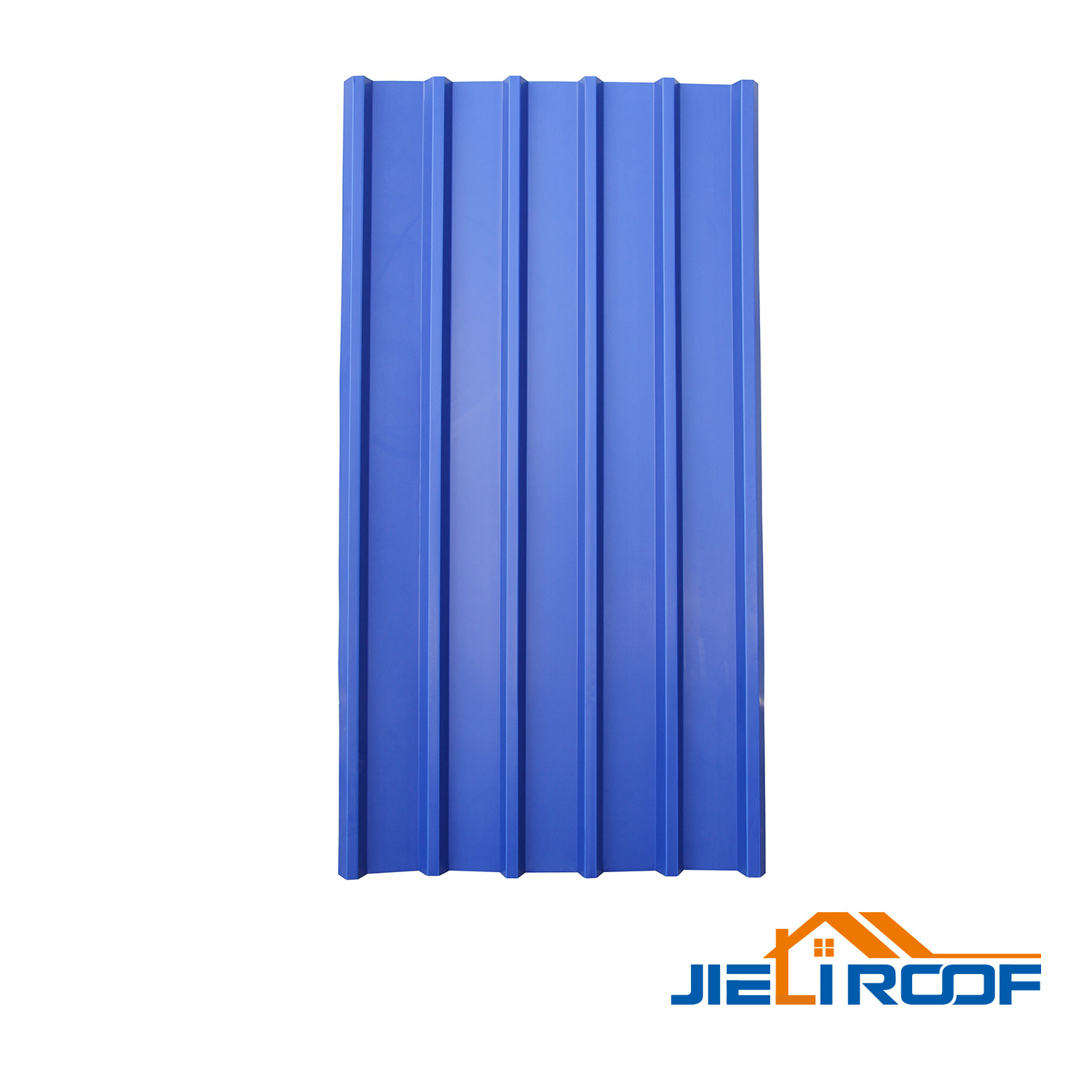

ASP roof sheet is the combination of ASA, GI steel and PVC, JIELI new product in 2016. It collect 3 material advantages of ASA, GI steel and PVC, perfect on resistance corrosion, impact and heat&sound. New and ideal solution for roofing and wall cladding.

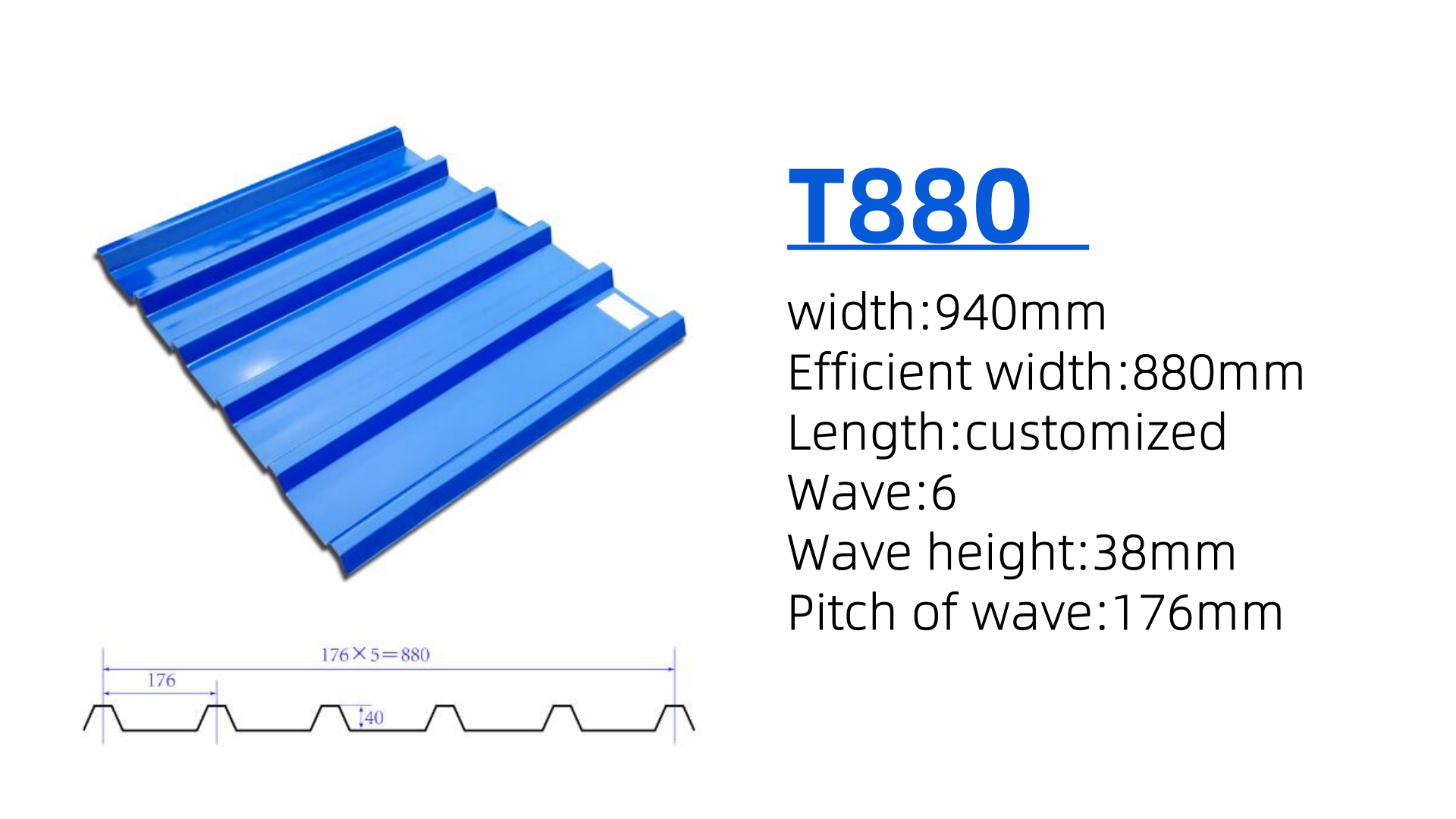

• Width: 940mm
• Cover Width: 880mm
• Length: Customized
• Thickness: 0.4mm,0.5mm,0.6mm,0.7mm,0.8mm
• Color: red, blue, gray, green…customized
• Purlin distance:1.2m-1.5m(depends)
•Application: house,, hotel, resort, school, park, sheds, etc
•Heat insulation performance: no shrinkage cracking at 100℃
•Sound insulation: reduce 25~ 30db
•No rusting
•Chemical corrosion resistance
•Colors last 20 years
•Fire rating A, not easy to burn
•Good impact resistance
•Light weight, 3.3-4.48kgs/m2
•Easy to install
•Environmentally friendly
Due to excellent performance on Corrosion resisttance and Color stable, Widely used in commercial and industrial buildings, like factory, warehouse, parking zone, plaza, seaside buildings…
|
Model number |
ASP STEEL SHEET Trapezoidal 880 |
|
Material |
ASA/PVC+Galvanized sheet+PVC |
|
Quality assurance |
8-15 years |
|
Service life |
Over 30 years, 15-20 Years no fading |
|
Brand Name |
JIELI ROOF |
|
Width |
940mm |
|
Length |
Customized,max 5.8m in 20ft container, 11.8m in 40ft container |
|
Weight |
3.3-4.48kg/㎡ |
|
Thickness |
ASA 0.1mm, PVC 0.1mm, Steel：0.4mm，0.5mm，0.6mm…. |
|
Colour |
Blue, Red, Gray, Green, Golden or customized |
|
Advantage |
Anti-corrosion, heat insulation, light weight, fire prevention, color stability, anti-ultraviolet, anti-impact, good sound insulation, environmental protection, waterproof |
|
Place of Origin |
China |
